Turnkey PCB assembly gives an OEM one coordinated route from manufacturing data to tested circuit board assemblies. Depending on the agreed scope, the supplier can manage PCB fabrication, component procurement, SMT and through-hole assembly, inspection, testing, programming and delivery.
The main buying decision is not simply whether to “use turnkey.” It is deciding which materials the manufacturer should control, which parts the customer should supply, how substitutions will be approved, what traceability records are required and which tests define an acceptable PCBA.
GreenPCBA provides turnkey PCB assembly services for prototype and production projects. This guide explains the commercial and technical details OEM engineers, sourcing teams and product companies should settle before requesting a quotation.
Turnkey PCB assembly is a manufacturing model in which one supplier coordinates PCB fabrication, component sourcing, assembly, inspection, testing and delivery under one controlled order.
The customer normally provides approved manufacturing data: Gerber or ODB++ files, a bill of materials (BOM), centroid data, assembly drawings, test requirements and order quantities. The manufacturer reviews those inputs, confirms the production route, procures the agreed materials and delivers assembled boards.
Turnkey does not automatically mean that the manufacturer owns the circuit design. Unless design services are included in the quotation, the OEM remains responsible for product requirements and design authority. The assembly provider can perform DFM, DFA and DFT reviews and report manufacturability risks, but design changes should remain subject to written customer approval.
| Scope | Typical Manufacturer Responsibility | Typical Customer Responsibility |
|---|---|---|
| Manufacturing data | Review files, identify conflicts and prepare the process | Release complete, matching and revision-controlled files |
| Materials | Purchase the agreed PCBs and components | Approve manufacturers, alternates and sourcing rules |
| Assembly | Plan and execute SMT, through-hole or mixed assembly | Define workmanship and special-process requirements |
| Verification | Perform the quoted inspection and testing | Provide acceptance limits, test files and expected results |

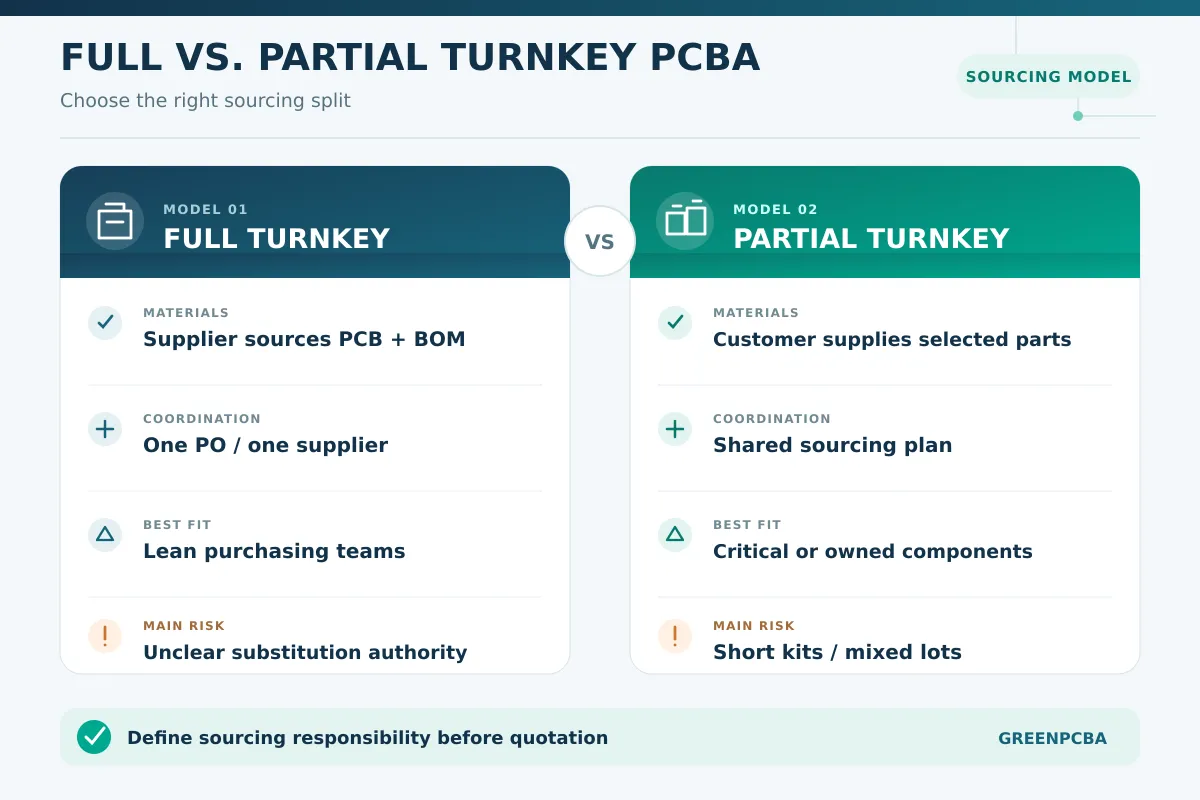

Full turnkey PCB assembly places most material and manufacturing responsibility with the supplier, while partial turnkey assembly divides sourcing responsibility between the supplier and the customer.
Under a full turnkey model, the manufacturer usually buys the bare PCB and all BOM components, then assembles and tests the board. Under a partial turnkey model, the customer supplies selected parts and the manufacturer obtains the remaining materials. Partial turnkey is also called consigned, kitted or hybrid assembly, although individual suppliers may define those terms differently.
| Decision Factor | Full Turnkey | Partial Turnkey |
|---|---|---|
| Component purchasing | Manufacturer purchases most or all BOM items | Customer supplies defined parts; manufacturer sources the balance |
| Best fit | Teams seeking one purchase order and one accountable production route | Projects with proprietary, allocated, pre-owned or customer-approved stock |
| Customer workload | Lower purchasing and logistics workload | More coordination, kitting and shipment control |
| Material visibility | Requires clear quotation assumptions and sourcing records | Customer retains direct control over consigned materials |
| Main risk | Unapproved sourcing assumptions or unclear alternate-part authority | Short kits, damaged packaging, mixed lots or late consigned parts |
| Cost interpretation | Includes purchasing, handling and material-risk management | Quoted assembly cost may exclude the real cost of customer-supplied parts |
Choose full turnkey when your team wants one supplier to coordinate the PCB, standard components and production schedule; when internal procurement resources are limited; or when the manufacturer can consolidate purchasing more efficiently. It is also useful when the project must move from prototype PCB assembly into repeat orders using a controlled material record.
Choose partial turnkey when you already own usable component stock, must provide programmed or security-controlled devices, have customer-nominated suppliers, or need to retain control of scarce and high-value parts. The quotation should identify every consigned item, required quantity, expected attrition allowance, packaging condition and responsibility for shortages.

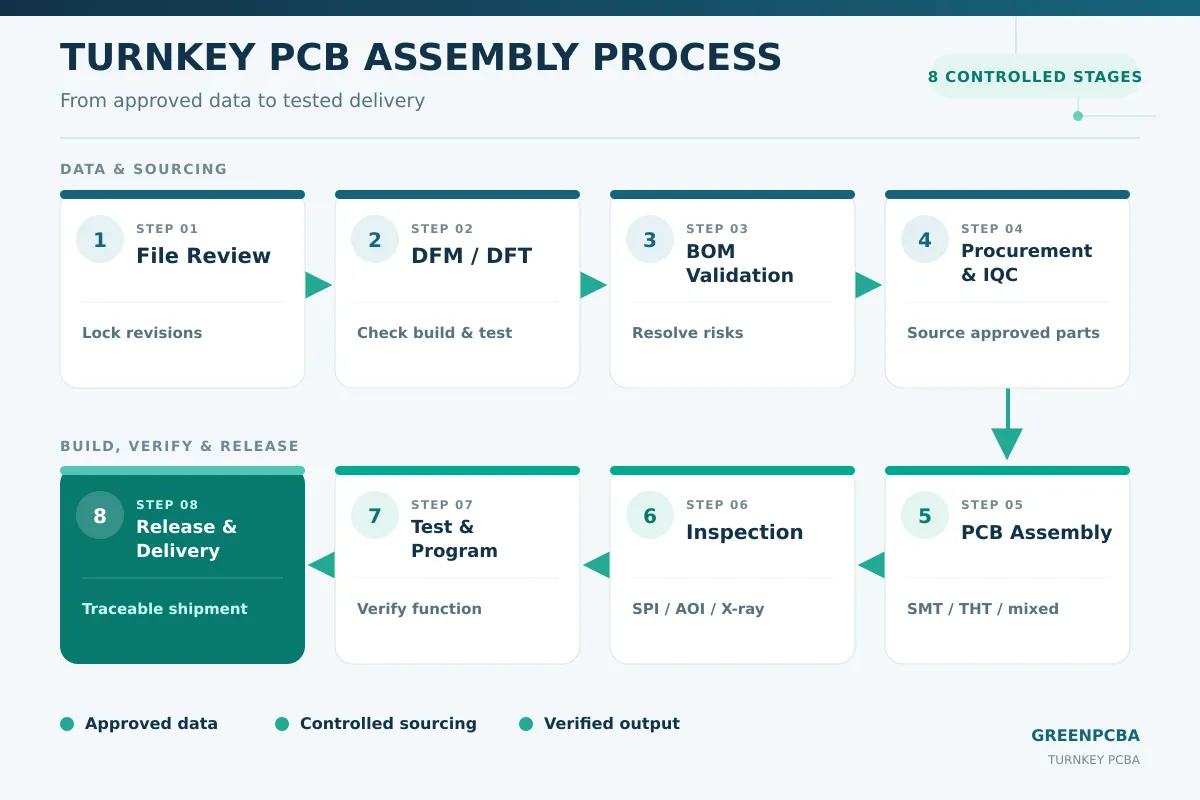

The turnkey PCB assembly process converts one approved data package into procured materials, assembled boards, verification records and released deliveries through a controlled sequence.
File and revision review: Confirm that the BOM, Gerber data, centroid file, assembly drawing and test documents identify the same product revision.
DFM, DFA and DFT review: Check board construction, panelization, footprints, polarity, spacing, solder access, tooling and test-point access.
BOM validation: Resolve incomplete part numbers, end-of-life items, package conflicts, minimum order quantities and alternate-part rules.
Procurement and incoming control: Purchase approved PCBs and components, record the required sourcing information and inspect incoming materials.
PCB fabrication and assembly: Fabricate the boards and execute the approved SMT, through-hole or mixed-technology route.
In-process inspection: Apply relevant controls such as solder paste inspection, first-article verification, AOI and X-ray inspection.
Electrical and functional verification: Run the quoted continuity, in-circuit, programming or functional tests using agreed limits.
Final release and delivery: Complete final inspection, traceability records, labeling, packaging and shipment.
Not every project needs every inspection or test method. The correct route depends on component packages, board density, production volume, end-use risk and the information available from the OEM. A quotation should state what is included rather than relying on the word “turnkey” as a substitute for a defined scope.
BOM and traceability control means linking each approved component and PCB lot to its purchasing source, production batch and authorization record at the level required by the product risk.
A usable BOM should specify the manufacturer name, complete manufacturer part number, package, quantity per assembly and reference designators. It should also identify do-not-substitute items and approved alternatives. GreenPCBA’s dedicated PCB components sourcing service can support the procurement scope, but the customer and manufacturer still need an agreed approval route.
| BOM Risk | Potential Result | Required Control |
|---|---|---|
| Incomplete or ambiguous MPN | Wrong package, value or temperature grade | Confirm a complete manufacturer part number before ordering |
| Lifecycle or availability issue | Long lead time, redesign or interrupted production | Review lifecycle status and propose options before purchase |
| Uncontrolled substitution | Electrical, mechanical, firmware or compliance mismatch | Use written customer approval and record the accepted alternative |
| Unclear sourcing channel | Reduced traceability or counterfeit-component exposure | Define approved manufacturers, distributors and documentation |
| Consigned-material shortage | Line stoppage or incomplete quantity | Agree attrition, pack condition, lot separation and replenishment rules |
An alternative should be evaluated for form, fit and function as well as package, tolerance, voltage, current, temperature rating, lifecycle status and regulatory requirements. No proposed substitute should be purchased for the order until the approval authority defined by the customer has released it.
Traceability depth should match product risk. Records may include purchase order, supplier, manufacturer, part number, lot or date code, incoming inspection, work order, assembly revision, test result and shipment batch. IPC-1782A describes risk-based manufacturing and supply-chain traceability for electronic products. If the destination market requires RoHS compliance, the material plan should also address the 10 substances currently restricted by the EU RoHS framework and any applicable exemptions.
A turnkey PCBA quality plan combines incoming control, process inspection and electrical verification to address the actual defect risks of the assembly.
Inspection methods are complementary. AOI can identify many visible placement and solder conditions, but it does not prove that firmware loads correctly or that the product performs its intended function. X-ray can evaluate hidden joints such as BGA connections, but it does not replace electrical or functional testing. The OEM should therefore define acceptance criteria and required test coverage before quotation.
| Control | Primary Purpose | When It Is Especially Relevant |
|---|---|---|
| Incoming quality control | Verify identity, condition and specified incoming characteristics | All purchased and customer-supplied materials |
| SPI | Check solder paste deposit before component placement | Fine-pitch, dense and volume SMT assemblies |
| First-article verification | Compare the first assembled board with released data | New products and revision changes |
| AOI | Check visible component placement, polarity and solder conditions | SMT production with accessible optical features |
| X-ray inspection | Evaluate hidden solder joints and internal connection conditions | BGA, QFN and other bottom-terminated packages |
| ICT or flying probe | Check connectivity and selected component or circuit values | Boards with suitable access and an agreed electrical test strategy |
| Functional test | Verify defined inputs, outputs and operating behavior | Products with available firmware, fixtures and acceptance limits |
The customer should identify the required workmanship class and product-specific acceptance rules. IPC describes J-STD-001 and IPC-A-610 as complementary soldering-requirement and assembly-acceptability standards. IPC-A-610 uses three product classes, so “IPC compliant” is incomplete unless the applicable class, revision and contractual criteria are stated.
Turnkey PCB assembly cost and lead time are determined by the complete material, setup, assembly, verification and delivery scope—not by board quantity alone.
The quoted total can include PCB fabrication, components, purchasing and handling, stencil and programming setup, SMT or through-hole assembly, tooling, inspection, electrical testing, conformal coating, cleaning, programming, labels, packaging, freight and material overage. Long-lead or minimum-order components can influence the schedule and cash requirement more than assembly time.
For an accurate comparison, ask each supplier to separate recurring unit cost from non-recurring engineering or tooling charges and to list exclusions. Also confirm whether the quotation includes excess material, unused customer-supplied stock, import charges, test fixtures and repeat-order setup.
Gerber, ODB++ or equivalent PCB fabrication data, including stack-up and panel requirements;
Complete BOM with MPNs, quantities, approved alternatives and do-not-substitute items;
Centroid or pick-and-place data for SMT programming;
Assembly drawings showing polarity, orientation and special-process notes;
Prototype quantity, production lot size, annual forecast and requested delivery date;
Workmanship class, inspection scope and acceptance criteria;
Programming files, version controls and device configuration instructions;
Electrical or functional test procedures, limits, fixtures and expected results;
Cleaning, coating, labeling, traceability, packaging and shipping requirements;
A clear list of customer-supplied materials and the responsibility for shortages or attrition.
A prototype order should validate the intended production route rather than only prove that one board powers on. Record any BOM, process, programming and test changes during the build, then release a controlled data package before moving to volume PCB assembly.
A successful turnkey PCBA project begins with controlled files and an explicit division of responsibility. Decide between full and partial turnkey, lock the BOM and substitution process, define traceability depth, match inspection to package risks and provide measurable test limits. These steps make quotations easier to compare and reduce preventable changes after procurement begins.
Send GreenPCBA your Gerber files, BOM, centroid data, assembly drawing, quantities and test requirements for a project-specific manufacturing review. Request a turnkey PCB assembly quotation.
These frequently asked questions clarify the sourcing, production and quotation decisions OEM buyers commonly face when ordering turnkey PCB assembly.
The agreed scope can include PCB fabrication, component sourcing, assembly, inspection, programming, electrical or functional testing, labeling, packaging and delivery. Buyers should confirm the included services and exclusions in the written quotation.
In full turnkey PCBA, the manufacturer normally sources the bare boards and most or all components. In partial turnkey PCBA, the customer supplies selected components while the manufacturer procures the remaining materials and completes assembly.
Yes. Those parts can be handled as customer-supplied materials under a partial turnkey arrangement. Define quantities, attrition allowance, packaging, moisture or ESD condition, lot identification and responsibility for shortages before shipment.
The BOM should identify approved alternatives and do-not-substitute parts. Any new alternative should be documented and checked for form, fit, function, package, ratings, lifecycle and compliance before written customer approval.
The appropriate combination depends on the design and failure risks. It may include incoming checks, SPI, first-article inspection, AOI, X-ray, ICT or flying probe, programming and functional testing. The RFQ should define acceptance limits and fixture responsibility.
No. Full turnkey can reduce internal purchasing and coordination work, but total cost depends on component prices, minimum order quantities, setup, testing, tooling and logistics. Compare total project scope rather than assembly price alone.
