Choosing the right PCB laminate material for your project

Selecting the best printed circuit board (PCB) laminate material is a critical decision in any electronic design project. This material can have a significant impact on factors such as PCB performance, durability, and cost. With the wide variety of laminate materials available, it can be intimidating to determine which option is best for your specific application. But don't worry, in this blog, we'll cover some of the most commonly used materials and discuss their properties to help you make an informed decision.

What is a PCB Laminate?

So what exactly is a PCB laminate?A PCB laminate is basically the non-conductive base layer on which the rest of the printed circuit board is constructed. It forms the core foundation that supports all the conductive copper traces and components that make up the functional board. It consists of multiple layers of woven glass fibers that are bonded or laminated together using epoxy resin. This creates a strong, stable material for the PCB base.

There are several types of laminating materials available for PCB manufacturing. The most common include:



FR-2 is a paper-based phenolic laminate. It consists of multiple layers of paper impregnated with phenolic resins and bonded under heat and pressure.FR-2 is one of the most economical options, but has relatively poor mechanical and electrical properties compared to other materials. It absorbs moisture and is limited to low frequency, low performance applications.



FR-3 is also a paper-based phenolic laminate, but uses a different resin for improved moisture resistance. It has slightly better mechanical stability than FR-2, but is still inexpensive and suitable for low-performance, cost-sensitive applications.



FR-4 glass epoxy is the most common and versatile PCB material. It uses a woven fiberglass cloth instead of paper and is impregnated with an epoxy resin. FR-4 pcb has good physical strength, temperature resistance, chemical stability, and electrical insulation properties. It is suitable for most general purpose PCBs.


High Tg Epoxy Resin

High Tg refers to epoxy resins with a high glass transition temperature. They exhibit higher thermal and mechanical properties than standard FR-4. High Tg epoxy resins are more expensive but are needed for boards in high temperature environments.


BT Epoxy Resins

BT Resin is a very low hygroscopicity epoxy resin variant. It offers excellent dimensional stability and high frequency performance. BT epoxy is one of the best PCB laminates for radio frequency (RF) boards. However, it is also more expensive than standard FR-4.


Polytetrafluoroethylene (Teflon)

PTFE (polytetrafluoroethylene) based laminates such as the Rogers 4000 series use Teflon as the substrate.PTFE has very low dielectric loss, making it ideal for microwave and other high frequency applications. However, it is also much more expensive than FR-4.



Polyimide printed circuit board laminates epitomize stability in extreme environments. Its superior thermoelasticity, chemical resistance and high-density flexibility make it the preferred choice for advanced applications in industries such as aerospace, automotive and consumer electronics. Ideal for multi-layer PCBs and rigid-flexible circuit boards.


Copper Clad Laminate

CCL (i.e. Copper Clad Laminate) is made of electronic-grade glass fiber or similar reinforcement impregnated with resin and a copper layer on one or both sides. Designers often choose copper-clad laminates for high-voltage circuit applications because of their excellent electrical, physical, and chemical properties.


CEM-1, CEM-3

CEM laminates use cellulose paper bonded with epoxy resin. They are a low-cost alternative to FR-4 when high performance is not required.CEM-3 offers better moisture resistance than CEM-1.


Different PCB Laminate Manufacturing Methods

There are several main manufacturing processes used to create printed circuit boards from various laminate materials. The most appropriate method depends on the type of laminate, the complexity of the board and the throughput.


Drilling and routing

The drilling and routing method is the most common and flexible process for the production of PCBs in small batches. With this method, holes are drilled in the exact position of the copper layer using a mechanical or laser drill. A milling machine then cuts the circuit board contour from the panel. The process is suitable for all standard PCB laminate materials such as FR-4, CCL and common flexible laminates. Initial tooling costs are low to medium, making it very economical for prototypes and small batches of boards.


Punching and Crunching

The punch and squeeze method is suitable for high volume production. It utilizes a steel punch die to punch out holes and cutouts instead of drilling holes. The holes and contours are "squeezed" out of the panel. This increases throughput and reduces cost per panel compared to drilling and routing. However, initial tooling costs are high due to the need for custom dies. This process is suitable for standard rigid laminates such as FR-4, but not for flexible materials.


Considerations for Advanced Laminates

Advanced PCB laminate materials such as PTFE, ceramic-filled PTFE, and high Tg epoxy require manufacturing process adjustments. Material properties require changes in drilling, punching, milling, and lamination parameters. For example, PTFE is difficult to drill and requires specialized drills. The high temperatures and pressures that occur during lamination of specialty materials may require special process development.

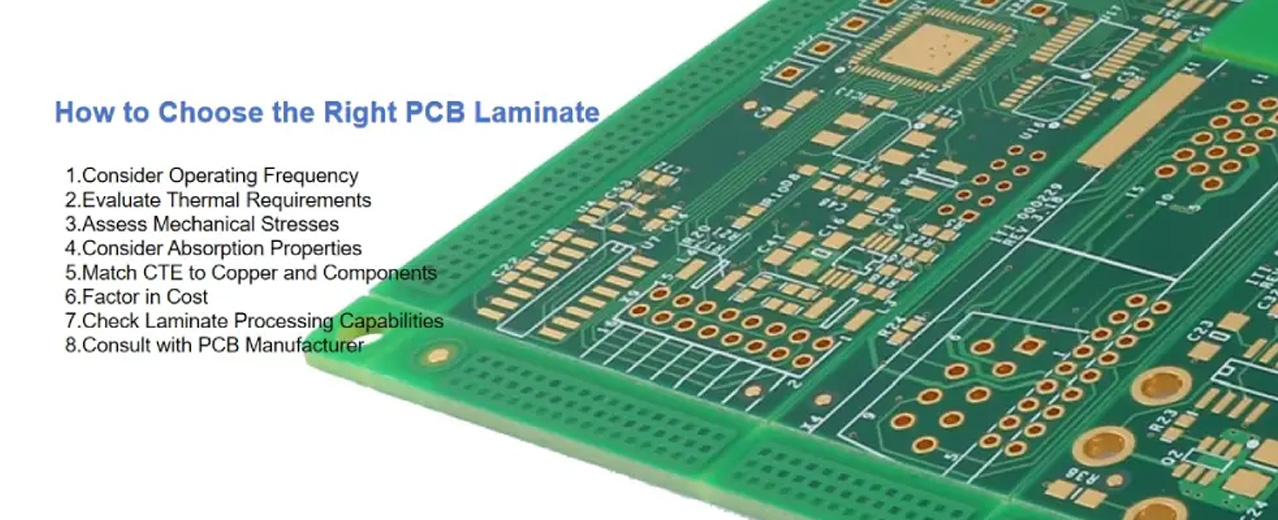

How to choose the right PCB laminate?

Consider the operating frequency

Choosing the right printed circuit board laminate begins with evaluating the circuit's operating frequency. For lower frequencies up to a few gigahertz, standard FR-4 laminates are sufficient. However, for RF and microwave applications where minimizing signal attenuation is critical, low-loss laminates such as PTFE are essential. Careful consideration of operating frequency ensures that your circuit maintains optimal signal integrity and performance.


Evaluating Thermal Requirements

Understanding the thermal requirements of your application is critical. High-power boards require a laminate with excellent thermal conductivity to dissipate heat effectively. Selecting a laminate with a glass transition temperature (Tg) that exceeds the maximum operating temperature is critical to prevent material degradation under thermal stress. Proper thermal management ensures the long-term reliability of electronic components.


Evaluating Mechanical Stress

Different applications place different mechanical stresses on PCBs. Flexible boards require strong yet thin laminates to allow for the necessary flexibility without compromising structural integrity. In contrast, rigid boards require high-strength laminates to withstand the mechanical stresses and ensure that circuits maintain their form and function even under stress. Customizing the laminate to specific mechanical requirements ensures the durability of the final product.


Consider Absorption Properties

Moisture absorption properties are critical, especially in high-reliability and moisture-prone environments. Laminates with low moisture absorption, such as BT epoxy and PTFE, are essential to prevent swelling or delamination. These properties enhance the stability and reliability of PCBs, especially in wet or humid conditions, ensuring consistent performance over time.


Matching CTE to copper and components

Aligning the coefficient of thermal expansion (CTE) of the laminate with that of copper and other components is critical to reliability during temperature cycling; CTE mismatches can lead to delamination or solder joint failure. Ensuring compatibility between materials minimizes stress during thermal changes, maintaining PCB integrity and preventing potential failure points.


Cost Factors

Balancing performance requirements with budgetary constraints is critical. Inexpensive options such as paper phenolic resins are suitable for applications where cost is a major consideration and offer basic performance. FR-4 laminates are widely used in many applications, striking a balance between cost and performance, making them a popular choice for a wide range of electronic devices.


Checking Laminate Processability

Consider the processability of the laminate, including the adhesive strength of the lamination, drillability of the punched holes, and precise spreadability during the molding process. Ensuring that the materials selected are compatible with the manufacturing process ensures seamless fabrication and assembly, reduces the likelihood of defects, and ensures the efficient production of high-quality PCBs.


Consulting with PCB Manufacturers

Finally, working with PCB manufacturers is invaluable.GreensTone electronics has extensive expertise and experience in the PCB industry and can provide tailored advice and china pcba board based on your specific requirements. We help our customers select the right laminating materials to ensure that your boards meet the required specifications and operate reliably under the expected operating conditions.
